Description
Large-diameter pipe handling support for the Americas
The 10” PRO Pipe Handling Tool gives crews a dedicated push-and-pull contact point when positioning suspended drill pipe, casing joints, bulk hoses and BOP service lines up to 10 inches. Its dual-hook head supports controlled movement from a defined working position while tag lines manage load rotation. CK Loosbrock USA supplies this Offshore Handling Systems tool across the Americas and can help identify the correct handle configuration, current documentation and availability for a specific operation.
Best suited for
- Suspended drill pipe and bottom-hole assembly components up to 10 inches.
- Casing joints, large-diameter hoses and BOP service lines.
- Rig-floor and catwalk work where crews need push-and-pull control from a defined position.
- Operations that already use tag lines and need an additional tool for final positioning and landing.
- Confined areas where the extra handle feature can assist with two-hand control and positioning.
Choosing the right configuration
Select the model by confirming the outside diameter of the pipe or hose, the available working space and the required hand-grip style. The single head opening measures 10½ inches and is intended for pipe and hoses up to 10 inches. Enclosed-handle models are available in 1500 mm and 1600 mm lengths. The open-handle model is available in 1600 mm. Custom lengths may be available on request. CK Loosbrock USA can confirm the appropriate product code before quotation.
Why source through CK Loosbrock USA
- Configuration guidance based on pipe diameter, handle style and working space.
- Current availability and quotation support from Conroe, Texas.
- Access to the official manufacturer specification sheet.
- Coordination for delivery requirements within the Americas.
Manufacturer specifications
| Product | Product code | Hand-grip style | Length |
|---|---|---|---|
| 10” PRO Pipe Handling Tool | PPHT18018 | Enclosed | 1500 mm |
| 10” PRO Pipe Handling Tool | PPHT18019 | Enclosed | 1600 mm |
| 10” PRO Pipe Handling Tool | PPHT19019 | Open | 1600 mm |

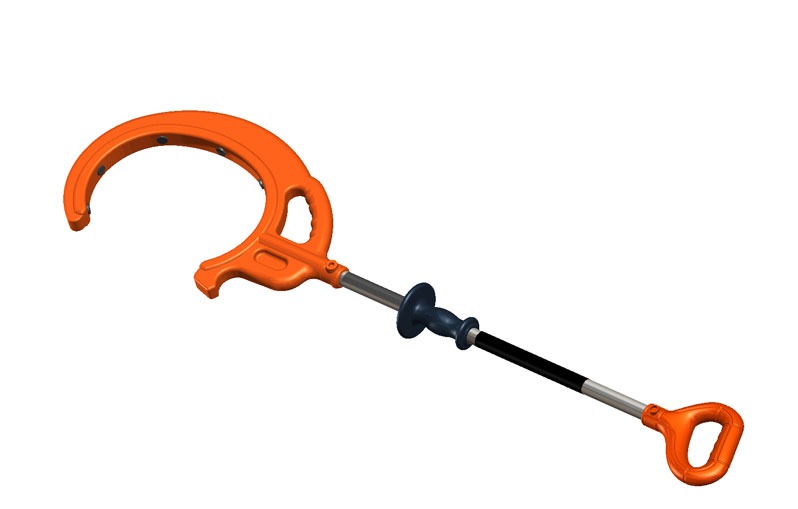

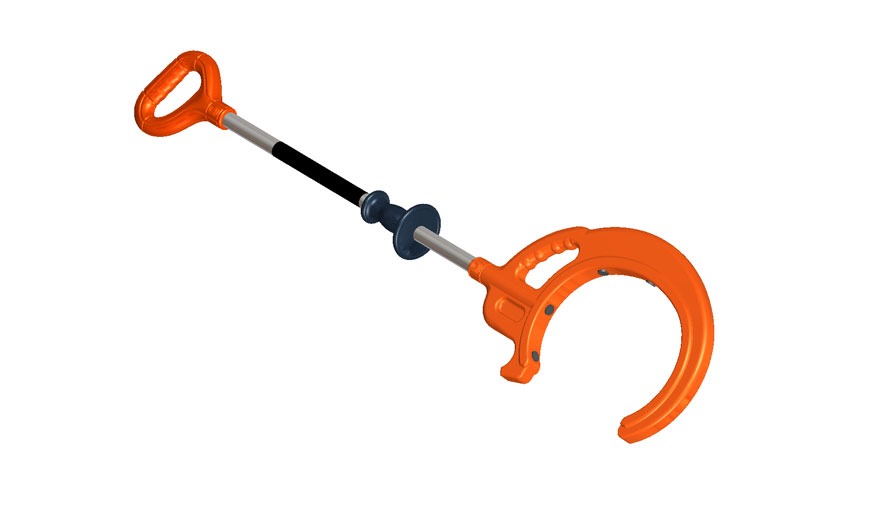

- Single 10½-inch opening with forward- and rear-facing internal hooks.
- Medium-density polyethylene head and 30 mm marine-grade aluminium staff.
- Tag-line retrieval capability.
- Hi-visibility attachments and replaceable non-slip rubber grommets.
- Hand protector and foam-rubber hand grip.
Application guidance

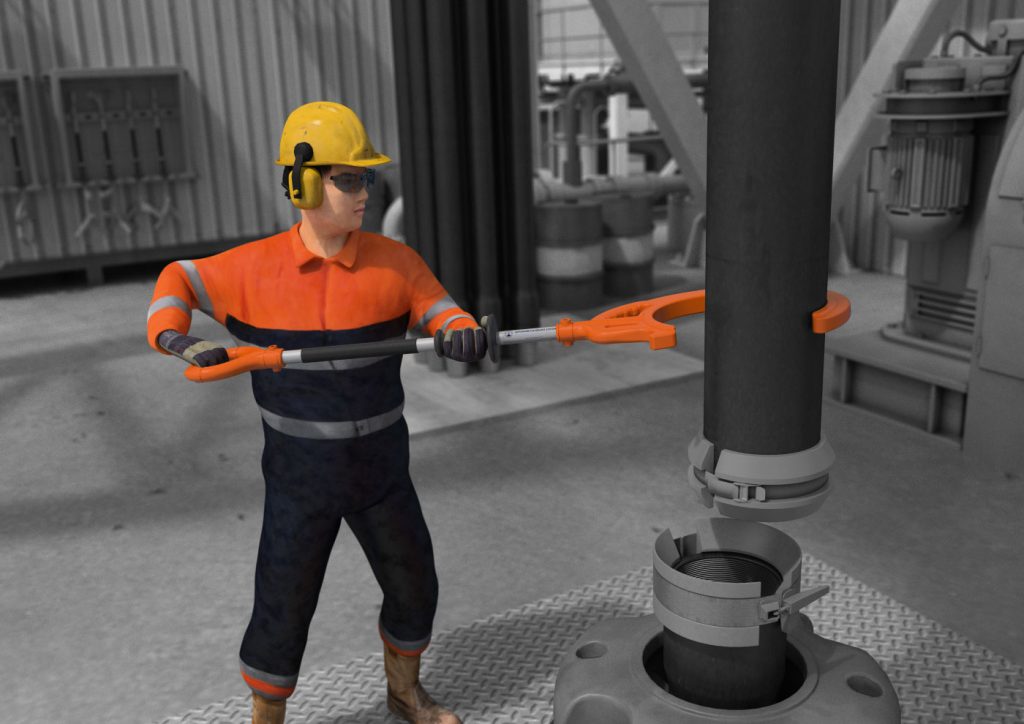

Use the tool as part of the approved handling plan for moving and landing suspended pipe, drilling tools and large hoses. Stabilize the load with tag lines before engaging the head. The tool complements tag-line control and does not replace the lift plan, communication procedures or site-specific risk controls.
Safety and use limitations
- Always wear the personal protective equipment required by the site procedure.
- Only engage pipe and hoses when they are positioned at approximately waist level.
- Stabilize a swinging load with tag lines from a safe position before engaging the tool.
- Never stand beneath a suspended load.
- Seat the pipe in the correct hook for the required push or pull function and use both hands on the tool.
- Engage the attachment face-on and maintain clear communication with the banksman and lifting-equipment operator.

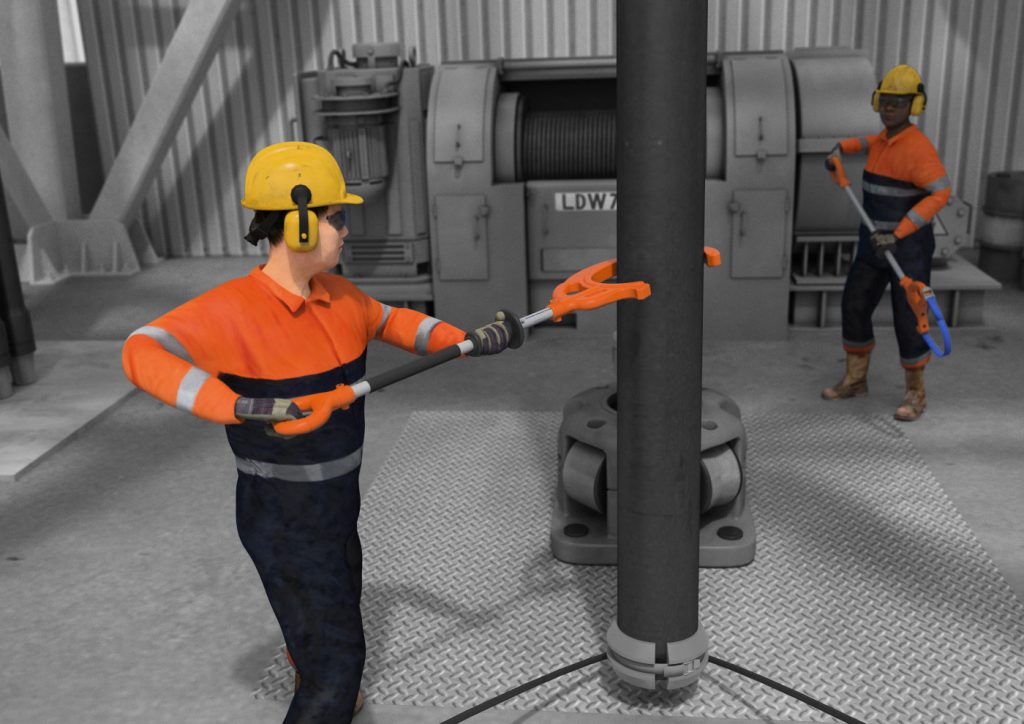

- Use two personnel when the approved handling plan requires it for larger pipe or casing joints.
- Remove the tool only after the load is positioned and lift-wire tension has been removed.
- This tool is not designed for leveraging activities.
Available documentation
Frequently asked questions
What pipe size can the tool accommodate?
The manufacturer specifies a 10½-inch head opening for handling pipe and hoses up to 10 inches in diameter.
Which handle styles are available?
Enclosed handles are listed in 1500 mm and 1600 mm lengths. An open-handle model is listed in 1600 mm.
Does this tool replace a tag line?
No. It is designed to complement tag lines by providing push-and-pull control during positioning and landing.
Can a custom length be requested?
Custom lengths are described as available on request. CK Loosbrock USA can confirm current options with the manufacturer.
How do I request the correct model?
Provide the pipe or hose diameter, intended application, preferred hand-grip style, working-space restrictions, quantity and delivery location.
Request current availability, documentation and configuration guidance for the 10” PRO Pipe Handling Tool from CK Loosbrock USA.
Related products: Pro Pipe Gripper Tool and Drill Pipe Multi Handling Tool. View the existing Hands Free Working range.
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for 10” PRO Pipe Handling Tool.
Please include the required product code, quantity and delivery location with your enquiry.
