Description
Single-handle support for controlled manual handling

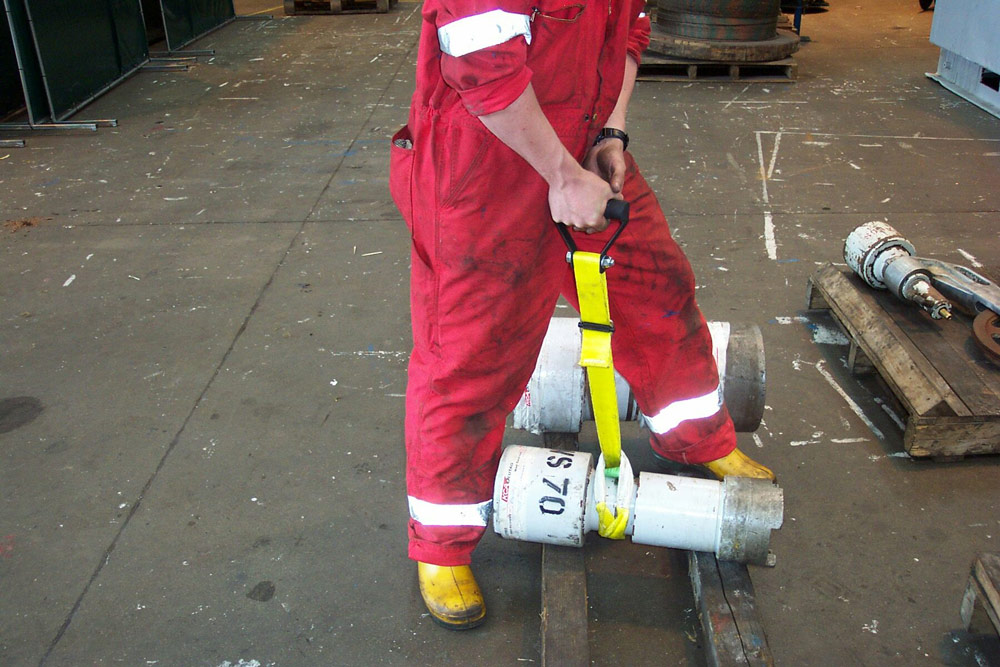

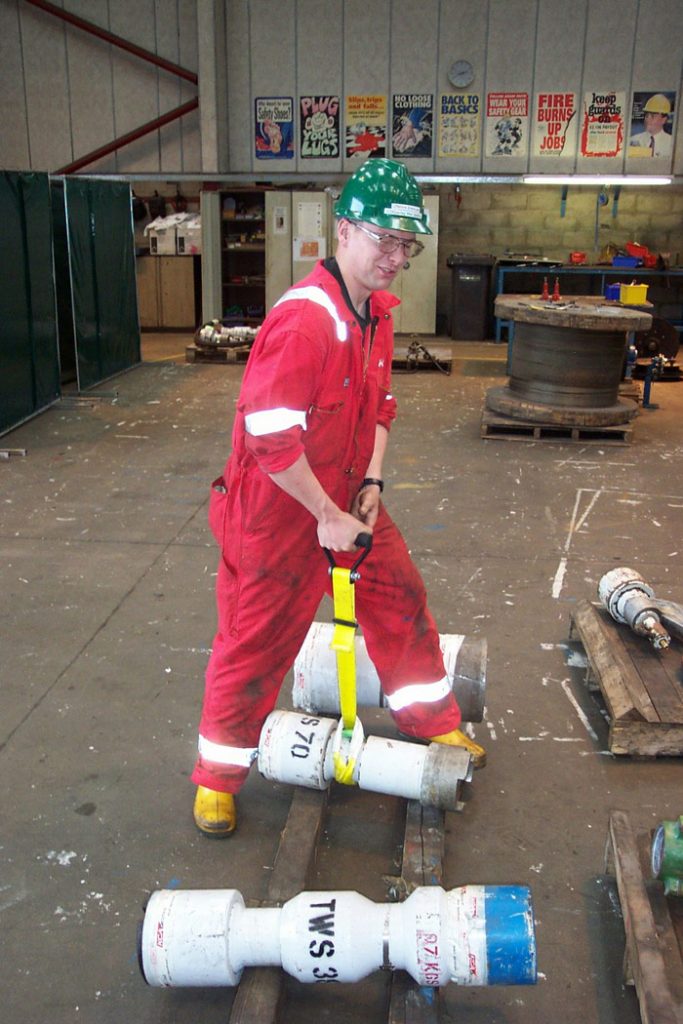

The Lift Assist Single Handle gives one person a defined handhold for manually moving compact oilfield components and deck items. Offshore Handling Systems designed the strap-and-handle assembly for tasks involving pup joints, chicksans, IBOP valves, fishing tools and comparable cargo. For teams in the United States, Canada, Latin America and the Caribbean, OHS USA can help confirm whether the single-handle model matches the component, manual-handling plan and work area.
Where this model fits
- Manual handling of pup joints, chicksans, IBOP valves and fishing tools.
- Deck and workshop tasks where a dedicated handle can improve grip and working posture.
- One-person operations that remain within the manufacturer rating and site procedure.

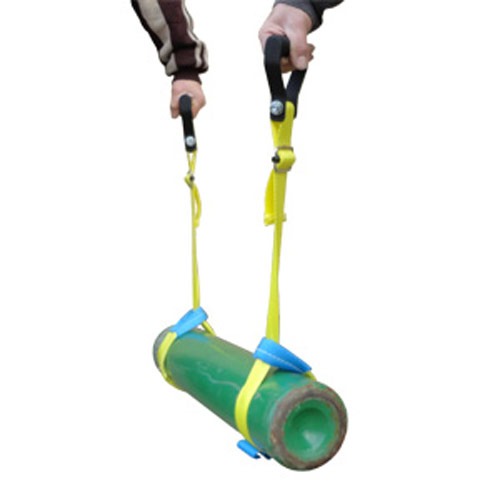

- More complex manual moves where two separate units may be selected after risk assessment.
- Hands Free or Hands Off initiatives intended to reduce direct hand contact with the item.
Selecting the Single Handle configuration

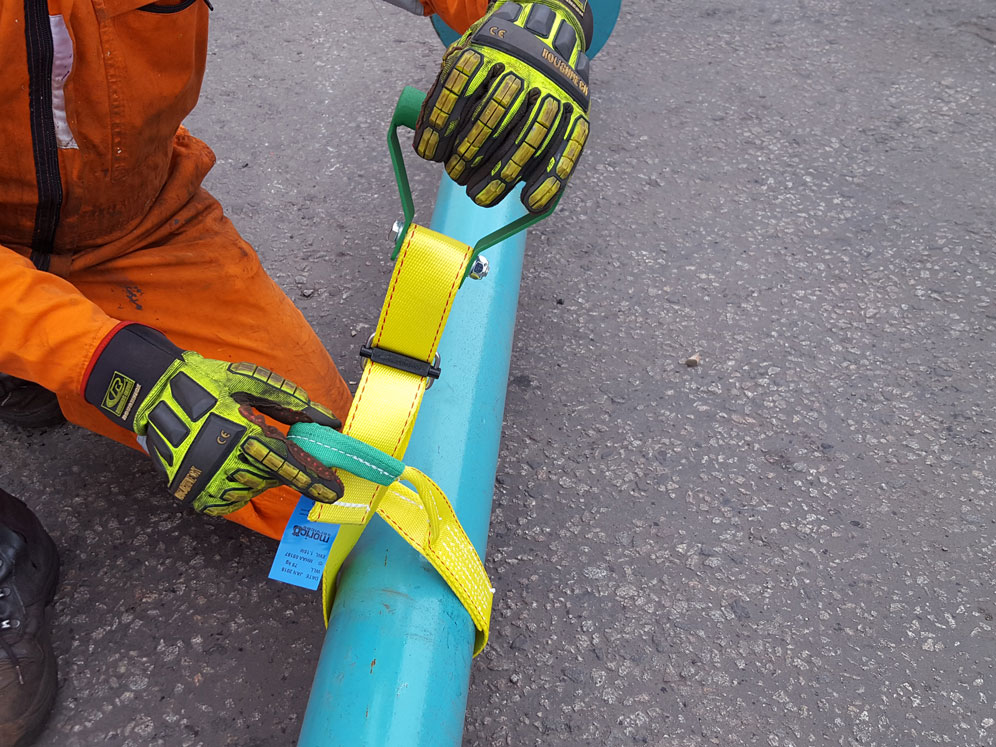

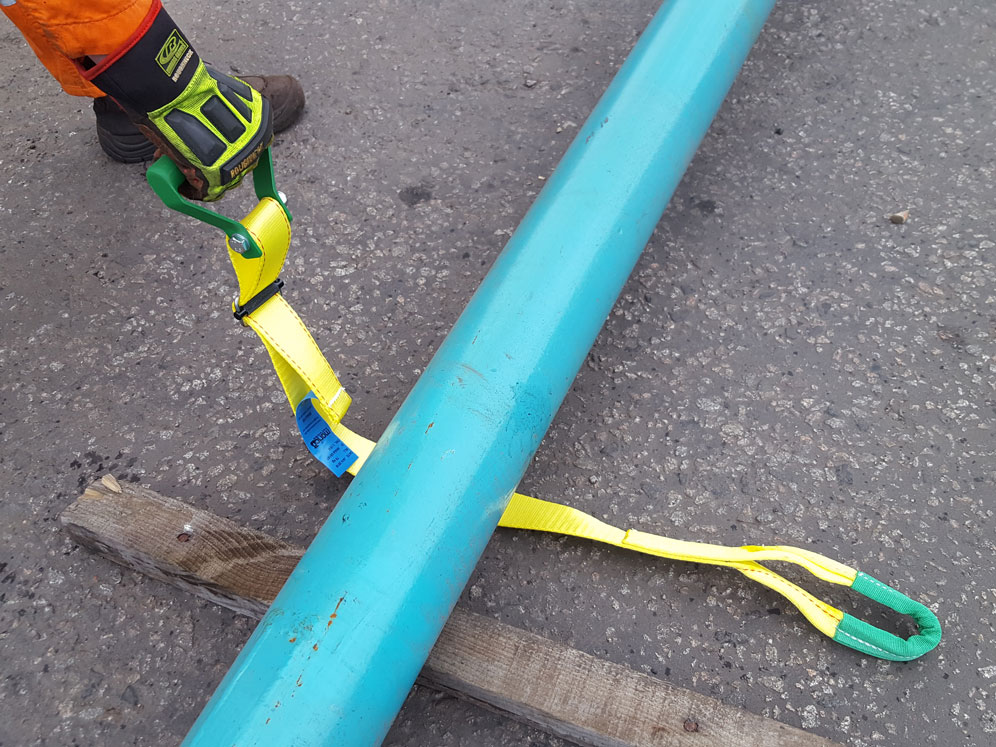

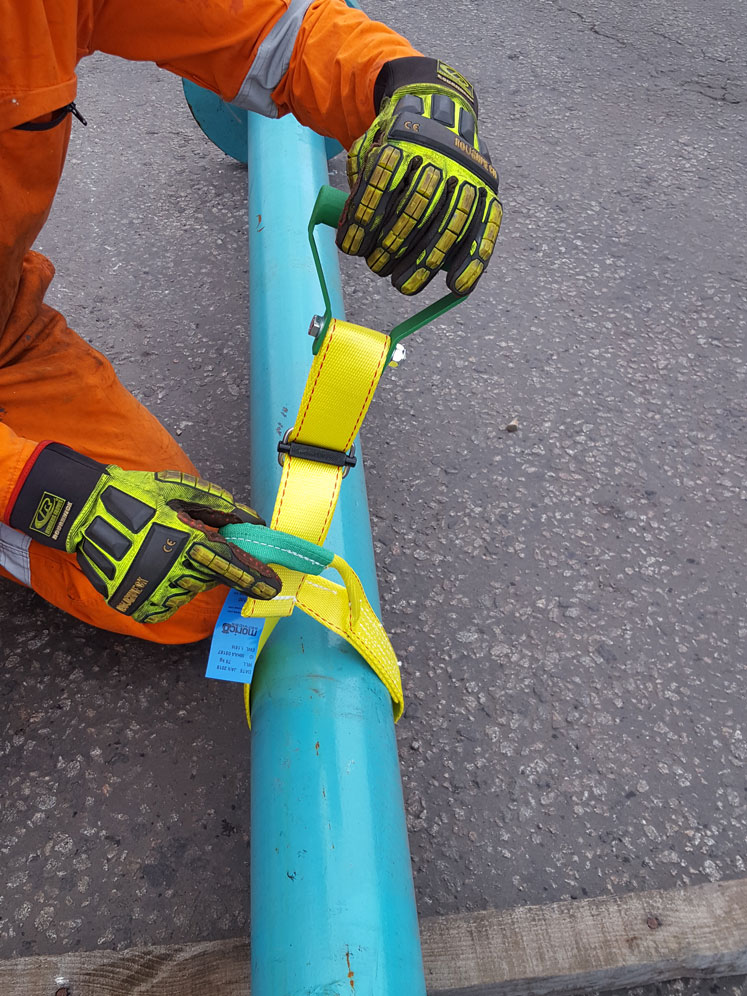

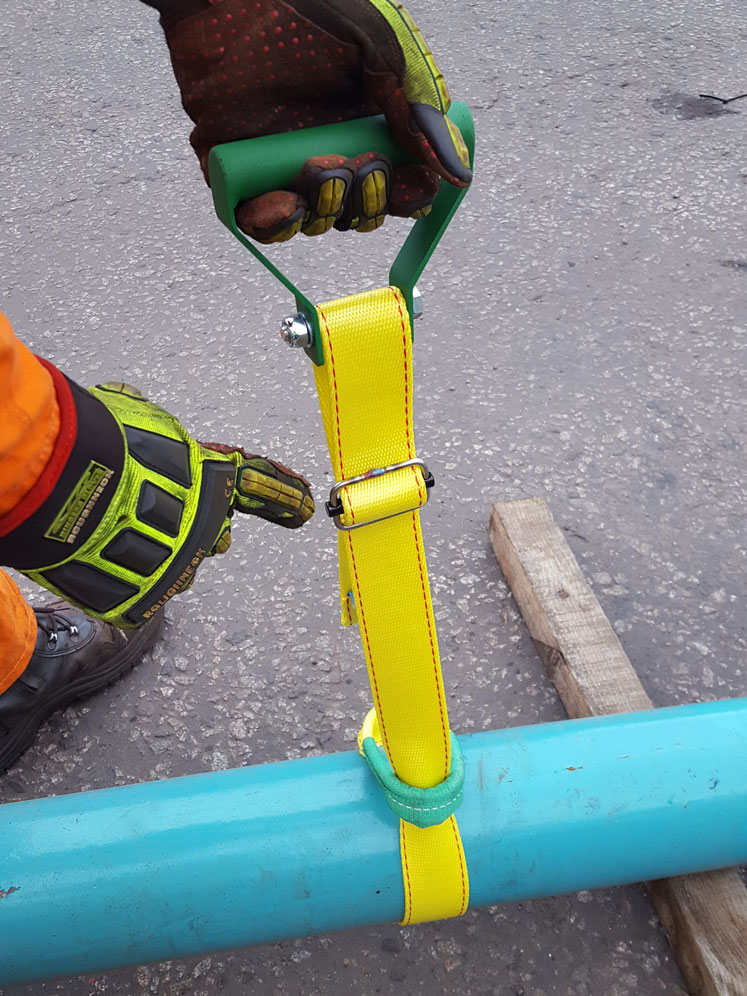

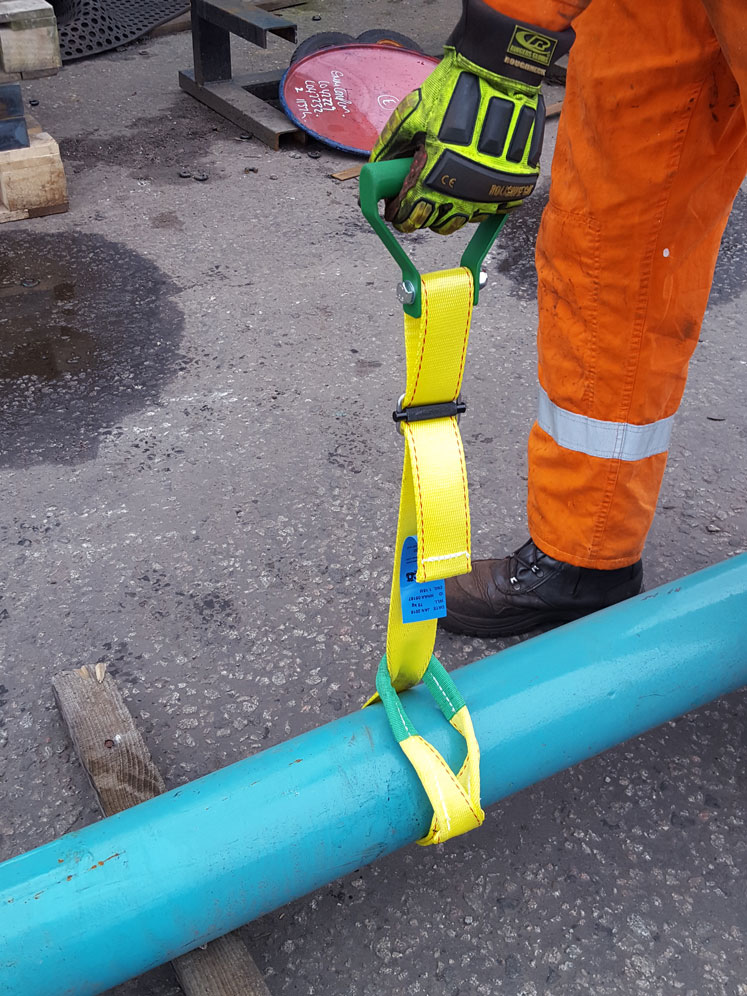

Start with the item weight, shape, surface condition and available attachment position. The standard Single Handle uses a 50 mm simplex webbing belt strap that is 900 mm long. Check that the strap can be placed and controlled without contacting sharp edges, hot surfaces or contamination that could affect the webbing. If the load needs two operators or more strap length around a tubular, compare the Lift Assist Double Handle. Valve-specific work may call for the Lift Assist Choke Valve Sling.
Manufacturer specifications
| Item | Manufacturer value |
|---|---|
| Product code | OHS-S100 |
| Working load limit | 75 kg |
| Minimum breaking load | 750 kg |
| Stated factor of safety | In excess of 10:1 |
| Standard webbing | 50 mm simplex belt strap, 900 mm long |
| Manufacturer documentation | CE marked; Safe Use Instruction Sheet |
These values describe the product published by Offshore Handling Systems Ltd. They do not replace the site risk assessment, local manual-handling limits or inspection requirements.
Planning a manual-handling task
Identify the route, destination and final hand position before attaching the unit. Confirm the item is stable, within the approved manual-handling limit and free from an uncontrolled energy source. Position the strap according to the current Safe Use Instruction Sheet, keep the item controlled and use coordinated commands if more than one person or more than one Lift Assist is involved. A pair of units does not automatically change the rated capacity of either unit.
Safety and use limitations
- This product is for manual handling only.
- Never connect it to a crane, hoist, tugger, forklift or any mechanical lifting or rigging system.
- Do not exceed the 75 kg manufacturer working load limit.
- Inspect the handle, stitching and webbing before use and remove damaged equipment from service.
- Protect the strap from sharp edges, heat, chemicals and surfaces that could cut or degrade it.
- Follow the current Safe Use Instruction Sheet, site procedure and required personal protective equipment.
Official documentation
Frequently asked questions
What is the working load limit?
Offshore Handling Systems lists a 75 kg working load limit for product code OHS-S100.
Can the Single Handle be used with a crane?
No. The manufacturer explicitly limits all Lift Assist products to manual handling and prohibits mechanical lifting or rigging use.
Can two units be used together?
The manufacturer says the model can be used in pairs for more complex manual tasks. The method still needs a task-specific risk assessment and coordinated procedure.
Which components is it intended to handle?
The manufacturer lists pup joints, chicksans, IBOP valves, fishing tools and other general deck cargo as examples.
What information should accompany an enquiry?
Provide the item description, weight, dimensions, attachment area, quantity, work location and applicable documentation requirements.
Request OHS USA selection support
Ask OHS USA to confirm the correct Lift Assist model and current documentation for your Americas operation. Include enough task detail to distinguish the Single Handle from the longer Double Handle and the valve-specific sling. You can also browse the Hands Free Lifting Aids range or the complete OHS product range.
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for Lift Assist Single Handle.
Please include the required product code, quantity and delivery location with your enquiry.
