Description
Push-and-pull control for suspended pipe in the Americas
The Drill Pipe Handling Tool gives rig-floor, catwalk and deck crews a dedicated contact point for positioning suspended drill pipe up to 5⅞ inches. Its two opposed U-shaped attachments support a quick change between push and pull functions while tag lines address load rotation. The same design is also listed for bulk hoses, BOP service lines and selected drilling or fishing tools. CK Loosbrock USA can support configuration selection and documentation across the Americas.
Best suited for
- Suspended drill pipe up to the manufacturer’s stated 5⅞-inch limit.
- Vertical or horizontal positioning and landing on the rig floor or catwalk.
- Bulk hoses and BOP service lines reviewed for the head opening and handling plan.
- Selected drilling and fishing tools requiring controlled push-and-pull contact.
- Operations that already use tag lines and need an additional positioning tool.
Choosing length and hand-grip style

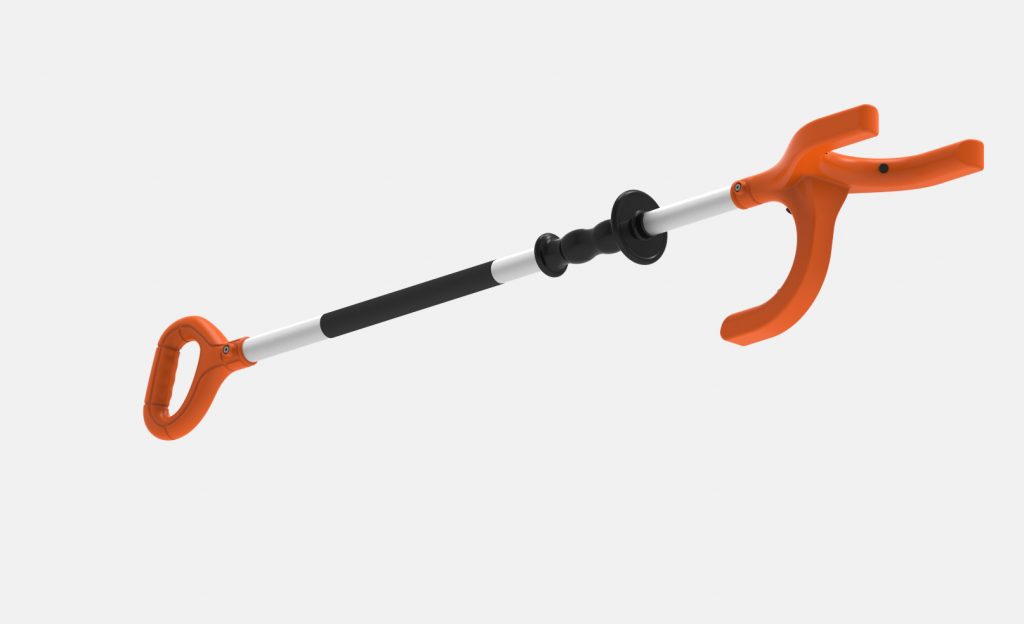

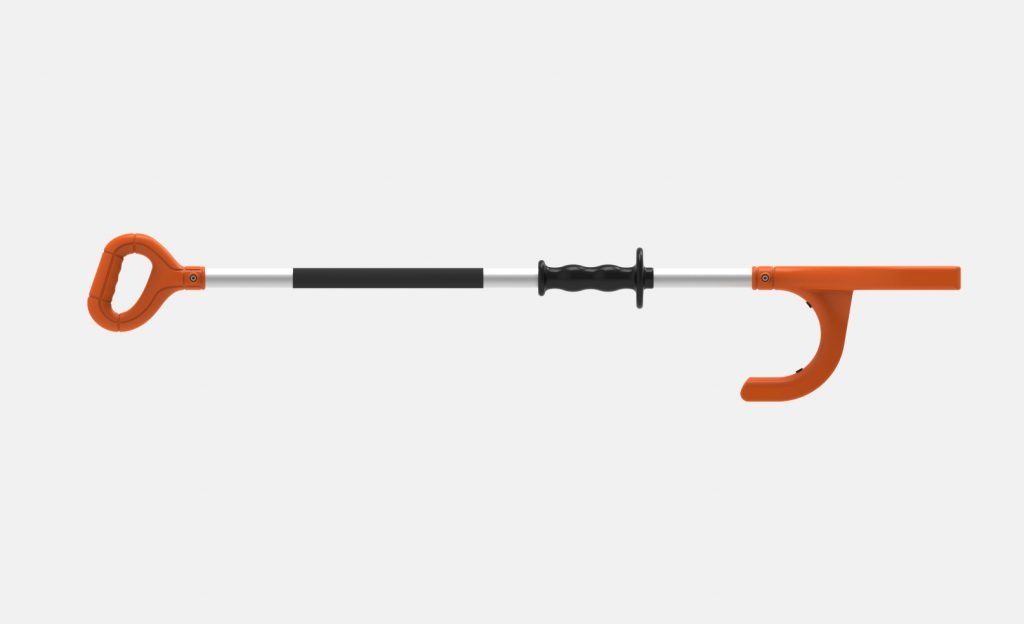

The specification sheet lists enclosed handles at 1200 and 1500 mm, plus an open-handle model at 1500 mm. Choose length according to the planned operator position, available clearance and engagement point at approximately waist level. Select an enclosed or open grip through the site’s task review, considering gloves, access and retention requirements. Custom lengths are described as available on request. Confirm the product code and current configuration before ordering.
Why source through CK Loosbrock USA
- Model review based on outside diameter, handle style and required reach.
- Support comparing this tool with the Multi Handling and Casing models.
- Access to the current manufacturer specification and use guidance.
- Quotation and delivery coordination for customers throughout the Americas.
Manufacturer specifications and features
| Model | Product code | Hand grip | Length |
|---|---|---|---|
| Drill Pipe Handling Tool | DPHT18003 | Enclosed | 1200 mm |
| Drill Pipe Handling Tool | DPHT18004 | Enclosed | 1500 mm |
| Drill Pipe Handling Tool | DPHT19004 | Open | 1500 mm |

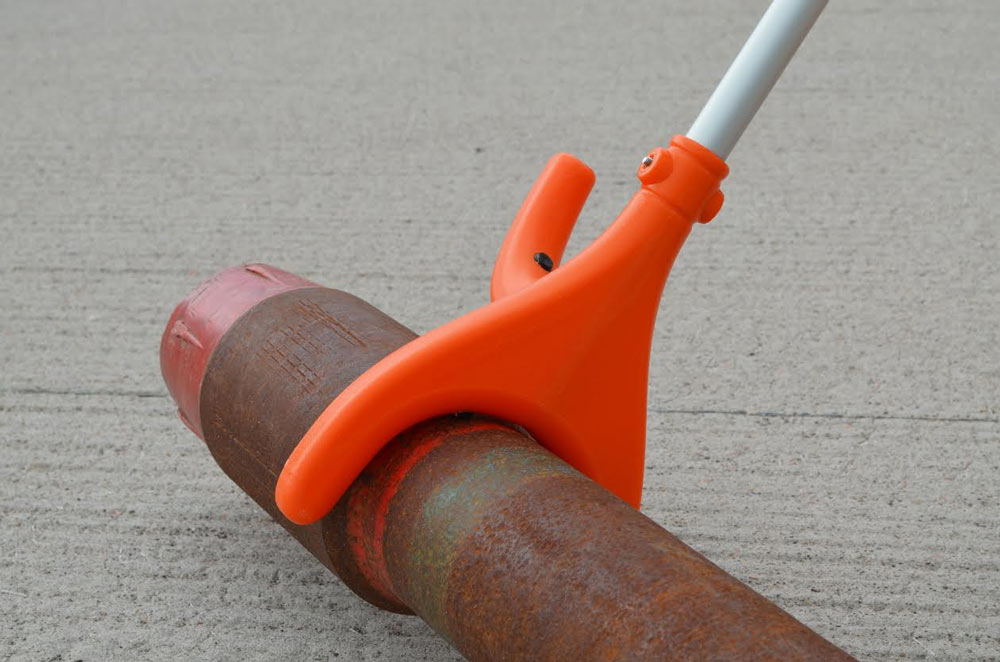

- Forward- and rear-facing U-shaped attachments for push-and-pull contact.

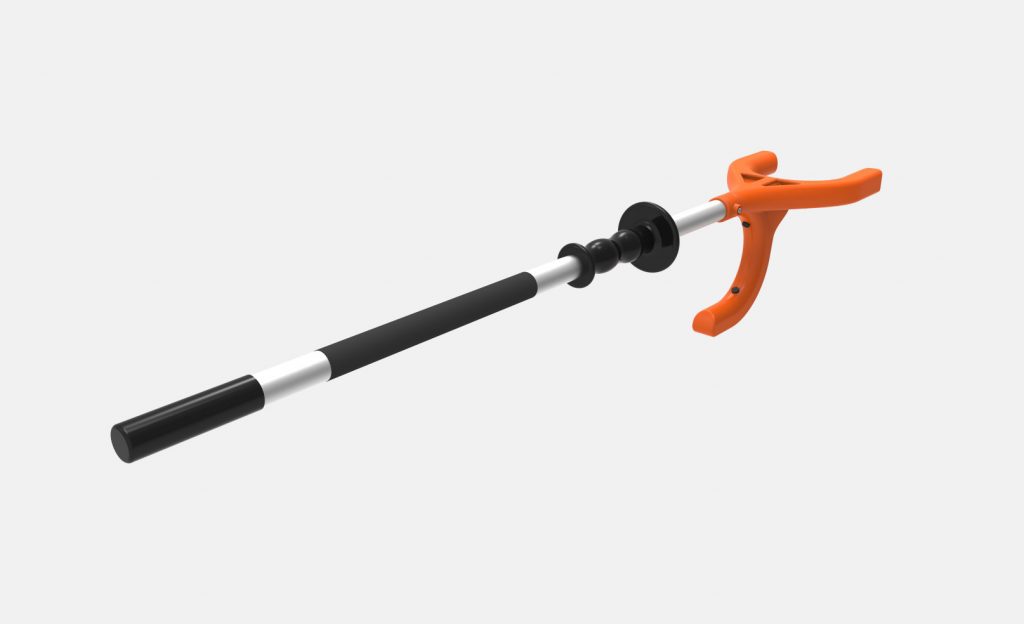

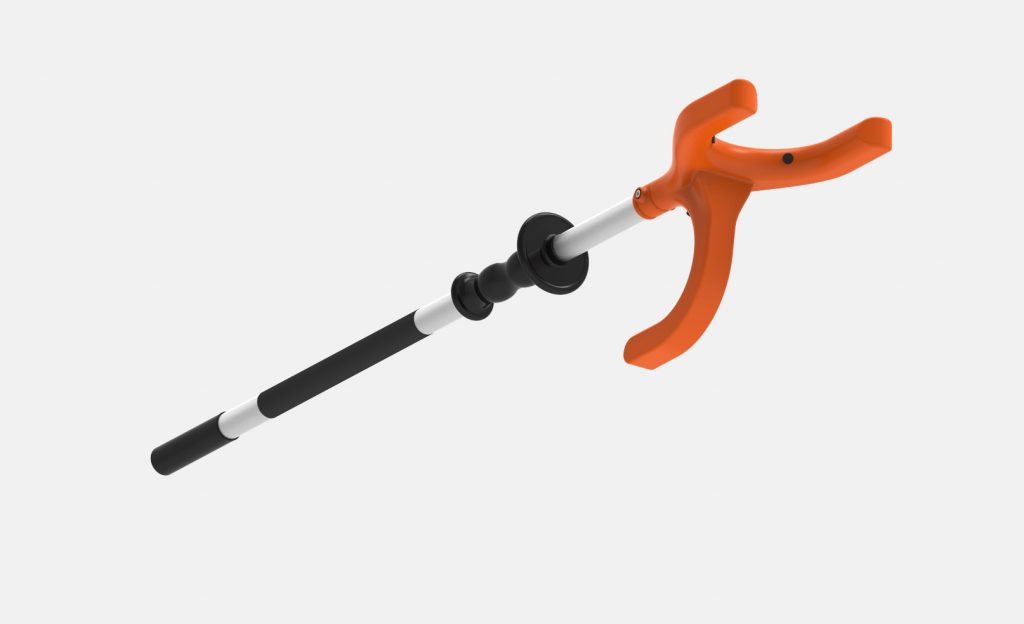

- Medium-density polyethylene head on a 30 mm marine-grade aluminium staff.
- Tag-line retrieval capability and hi-visibility attachments.
- Hand protector with a durable foam-rubber grip.
- Fully replaceable grommets with a non-slip, low-compression rubber surface.
Application guidance

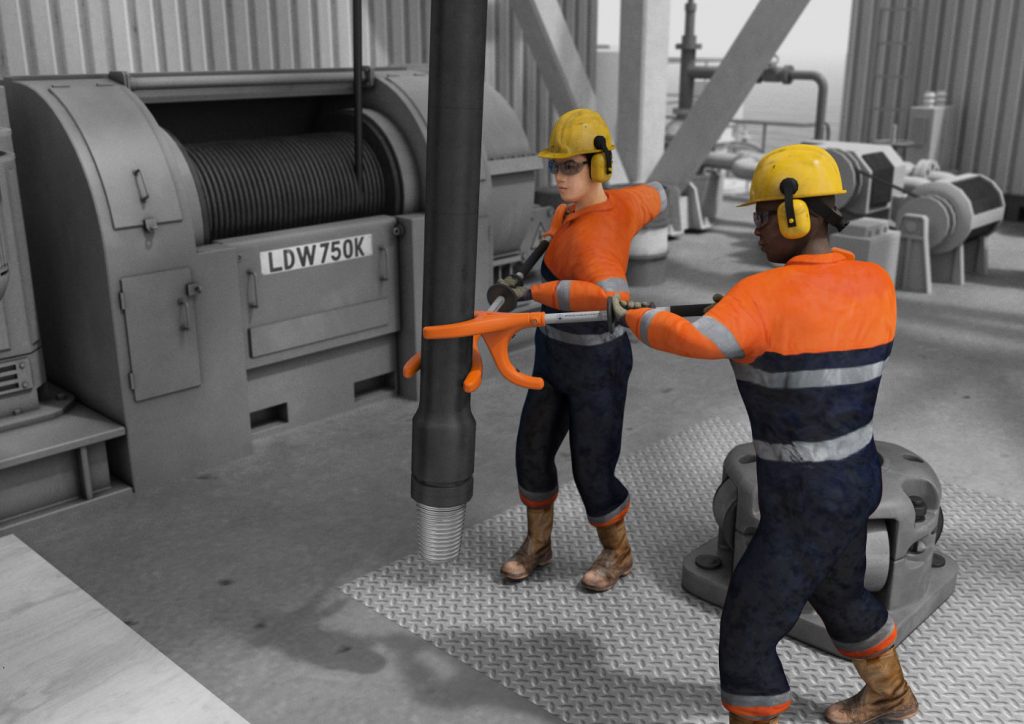

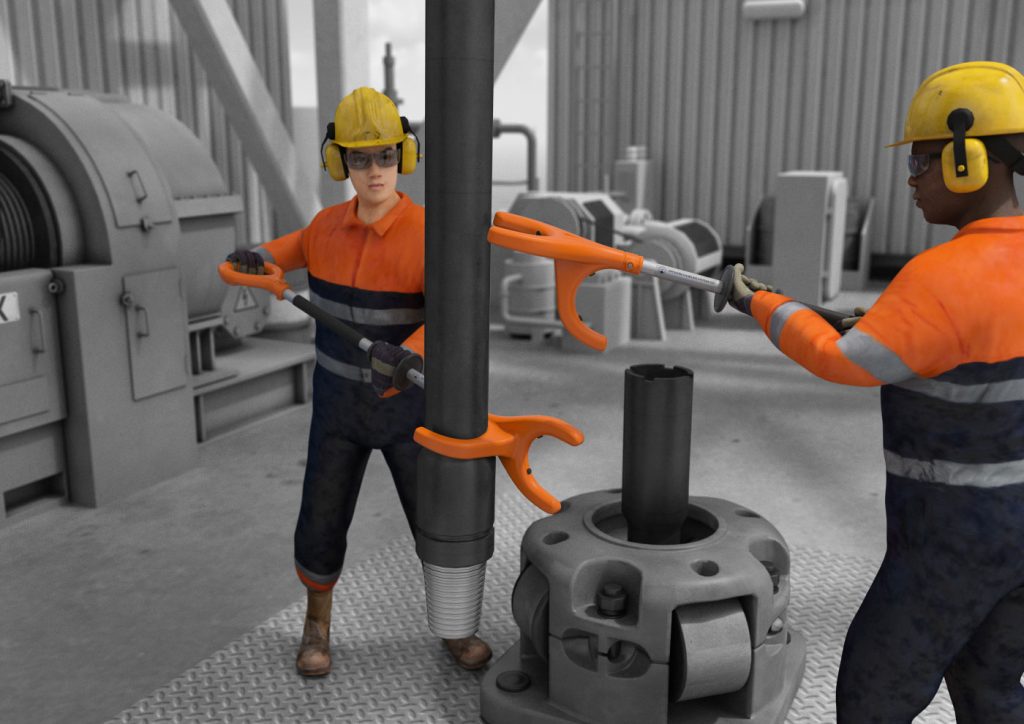

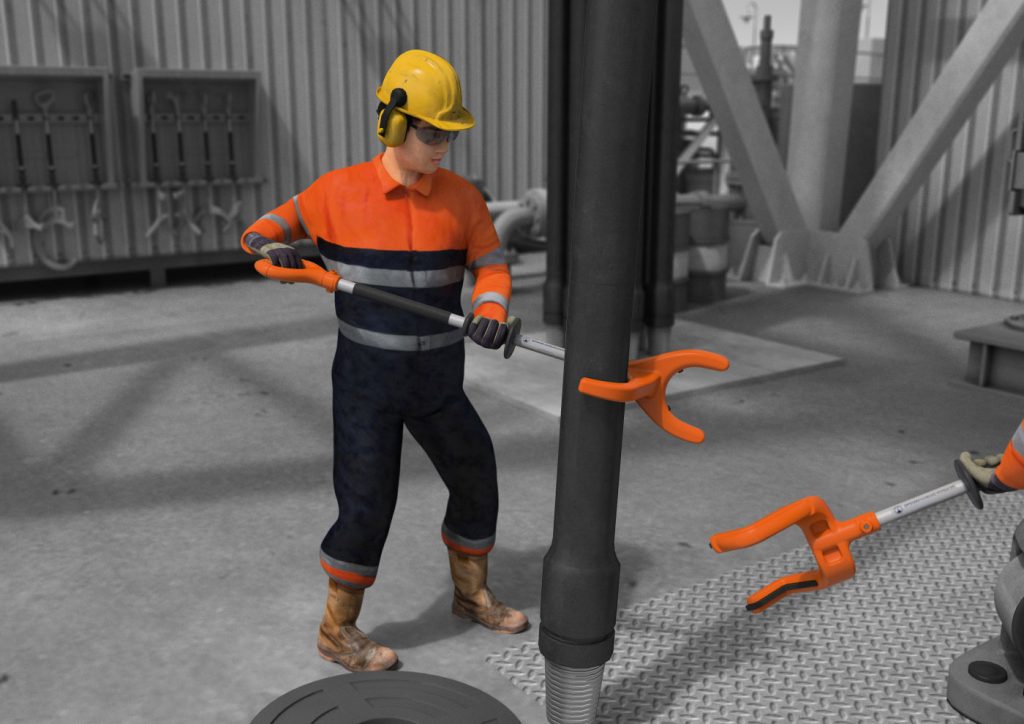

Stabilize the suspended load with tag lines from the position defined in the lift plan before engaging the tool. Present the U-shaped attachment face-on to the pipe or hose, seat it in the correct side for the required push or pull function and maintain two-hand control. Coordinate movement with the banksman, driller or lifting-equipment operator. Use the tool for final positioning and landing only within the approved procedure. It complements tag lines and does not replace them.
Safety and use limitations
- Wear the personal protective equipment required by the site procedure.
- Engage drill pipe and hoses only when positioned at approximately waist level.
- Remain alert to swinging loads and use tag lines from a safe position first.
- Never enter the suspended-load path or stand beneath a load.
- Confirm that the selected head opening and grommets suit the component.
- Keep clear communication with the person controlling the lifting equipment.
- Do not use the tool for prying or any other leveraging activity.
- Inspect the head, staff, grip and grommets before each use.
Available documentation
Frequently asked questions
What is the maximum listed drill-pipe diameter?
The manufacturer states up to 5⅞ inches. Confirm the actual outside diameter and the component geometry before selection.
Can the tool both push and pull?
Yes. The opposed U-shaped attachments provide separate contact points for the push and pull functions described by the manufacturer.
Does it replace a tag line?
No. The official guidance says it complements tag lines during the controlled movement and landing of suspended pipe.
Which standard handle options are documented?
The product sheet lists 1200 and 1500 mm enclosed handles and a 1500 mm open-handle model.
What information is needed for an enquiry?
Provide component type, outside diameter, orientation, working-space limits, preferred handle style, quantity and delivery location.
Request current documentation, model guidance and a quotation for the Drill Pipe Handling Tool from CK Loosbrock USA.
Compare the Drill Pipe Multi Handling Tool and Drill Pipe Set Back Tool, or view the Hands Free Working range.
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for Drill Pipe Handling Tool.
Please include the required product code, quantity and delivery location with your enquiry.
