Controlled setback positioning for drill crews in the Americas

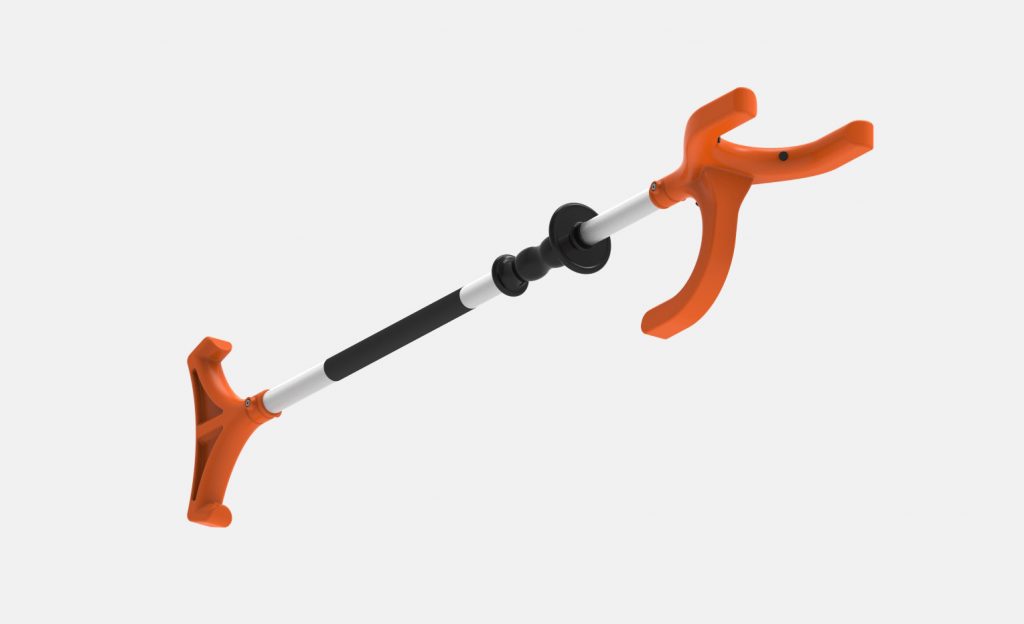

The Drill Pipe Set Back Tool is designed for positioning and storing vertical drill pipe in the setback area. Its forward- and rear-facing U-shaped head supports push-and-pull contact, while the shoulder attachment provides a separate pushing position for final placement. The layout helps the operator work from outside the landing area. CK Loosbrock USA can help customers across the Americas select the listed 1200 or 1500 mm enclosed-handle configuration.
Best suited for
- Drill-floor setback operations involving vertical pipe stands.
- Positioning a suspended stand after the connection has been broken.
- Push-and-pull adjustment around drill pipe up to 5⅞ inches.
- Tasks that require the operator’s feet to remain outside the landing area.
- Handling plans that use tag lines and clear driller or winch-operator communication.
Choosing the correct length
The manufacturer lists enclosed-handle models in 1200 and 1500 mm lengths. Select according to the setback layout, stand position, operator clearance and approved movement sequence. The longer option adds reach but should not be treated as permission to apply leverage. Confirm pipe outside diameter is within the stated 5⅞-inch limit and check whether one or more tools are required by the site-specific handling plan. Custom lengths are described as available on request.
Why source through CK Loosbrock USA
- Length review based on setback geometry and planned operator position.
- Confirmation of product code and current custom-length options.
- Access to the official manufacturer specification and use guidance.
- Quotation and delivery coordination throughout the Americas.
Manufacturer specifications and construction
| Model | Product code | Handle | Length |
|---|---|---|---|
| Drill Pipe Set Back Tool | DPST18005 | Enclosed | 1200 mm |
| Drill Pipe Set Back Tool | DPST18006 | Enclosed | 1500 mm |

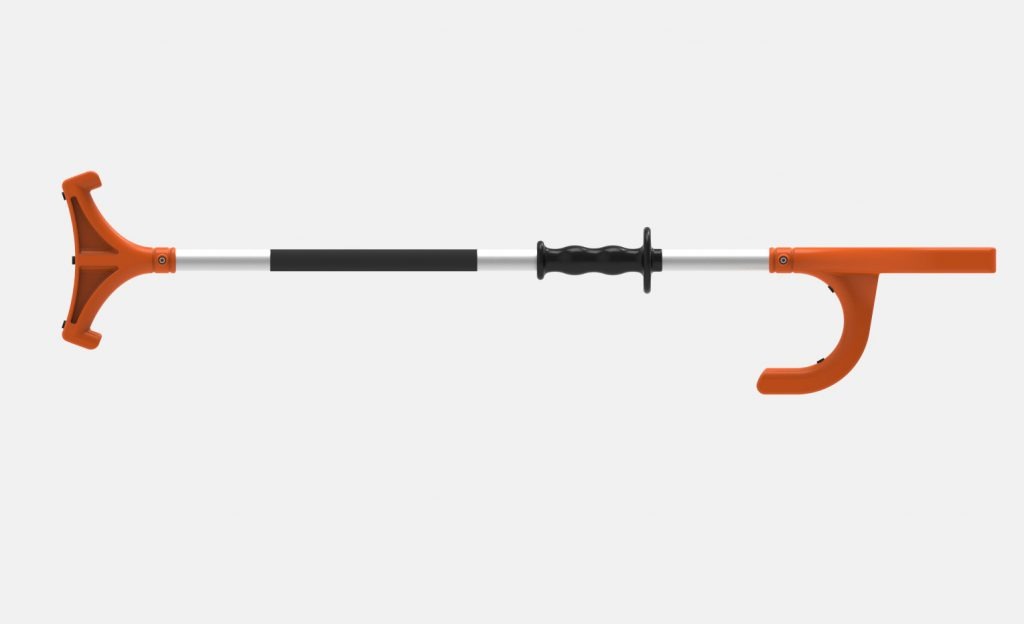

- Double U-shaped attachment for vertical drill pipe up to 5⅞ inches.
- Shoulder attachment for a defined pushing position.
- Tag-line retrieval hook and fitted hand protector.

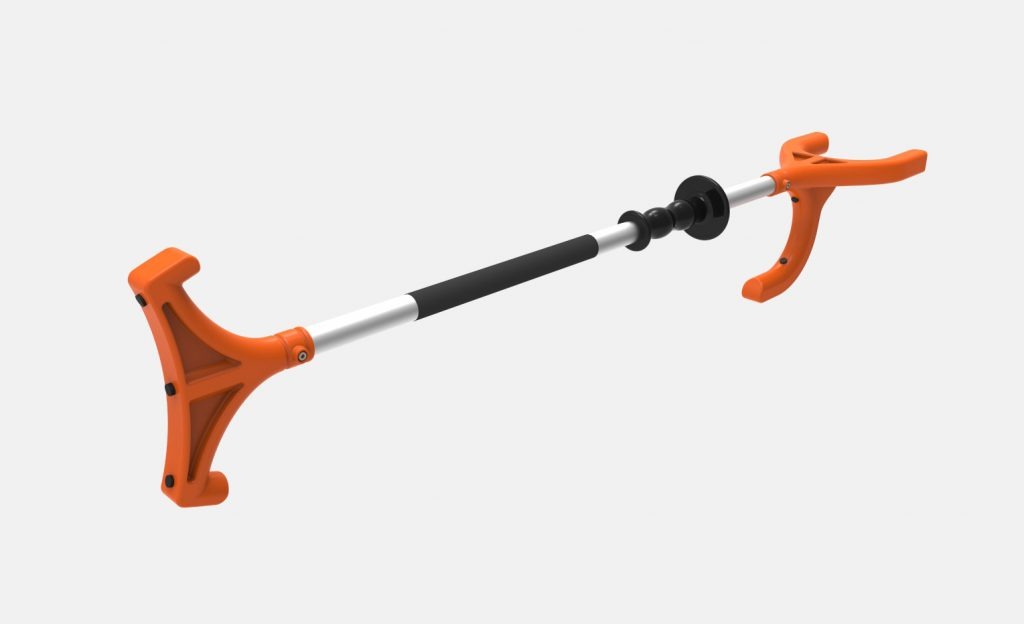

- 30 mm marine-grade aluminium staff fitted with a medium-density polyethylene head.
- Hi-visibility attachment, durable non-slip grip and replaceable low-compression rubber grommets.
Application guidance
After breaking the connection, lower the stand toward the setback area under the driller’s direction. Engage the U-shaped attachment around the stand above the drill-pipe collar. Use the correct side for the required push or pull function. The manufacturer states that maximum positioning force is achieved by using the shoulder attachment in the pushing action. Keep the tool aligned with the planned direction of movement and coordinate every adjustment with the driller and winch operator.
Safety and use limitations
- Wear the personal protective equipment required for drill-floor work.
- Keep feet clear of the setback landing area at all times.
- Never stand in front of the link or tilt assembly.
- Remain alert to swinging loads and plan an escape route before moving the stand.
- Use clear communication with the driller and winch operators.
- Do not use the tool as a lever. This limitation applies even when additional reach is available.
- Inspect the head, staff, grip and grommets before use.
- Store the tool in a clean, dry location after the task.
Available documentation
Frequently asked questions
What drill-pipe diameter is supported?
The manufacturer specifies vertical drill pipe up to 5⅞ inches. Confirm the actual outside diameter and collar geometry before selection.
Which standard lengths are listed?
The standard enclosed-handle models are 1200 mm, code DPST18005, and 1500 mm, code DPST18006.
What is the shoulder attachment for?
It provides a pushing position for placing the vertical stand while the operator remains away from the landing area.
Can the tool be used to pry a stand into place?
No. The manufacturer’s specification says the tool is not designed for leveraging activities.
What details should be supplied for a quotation?
Provide pipe diameter, setback layout, preferred length, required quantity, custom-length needs, documentation requirements and delivery location.
