Description
Match the wrench head to the hammer union

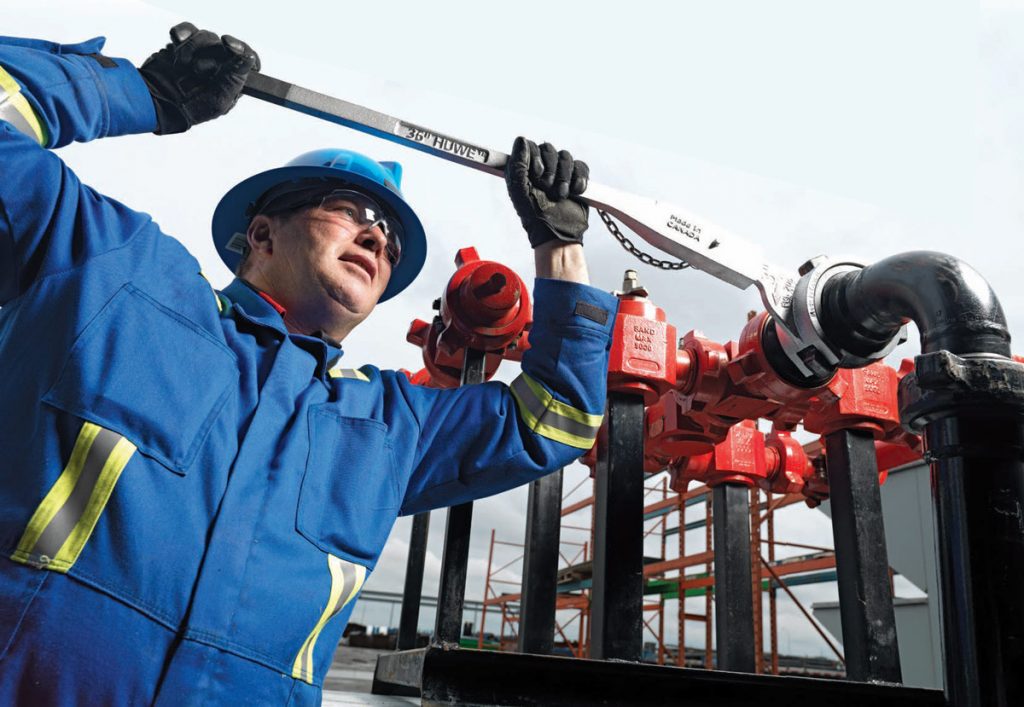

The HUWE® wrench is a modular hammer-union tool with interchangeable heads and handles. It gives crews a purpose-built alternative to repeatedly striking union lugs with a sledgehammer and can be configured for multiple union sizes and figure numbers. CK Loosbrock USA can help customers across the Americas identify the required head, choose a handle length for the available working space and request the current operation manual, brochure and availability.
Best suited for
- Hammer unions on flow, flare, injection and high-pressure lines.
- Drilling rigs, service rigs, frac equipment and well-testing operations.
- Production facilities, cementing and coil-tubing work.
- Fabrication shops working with supported hammer-union sizes and figure numbers.
- Confined work areas where a reversible handle angle and multiple handle lengths help with access.
Choosing the correct HUWE configuration

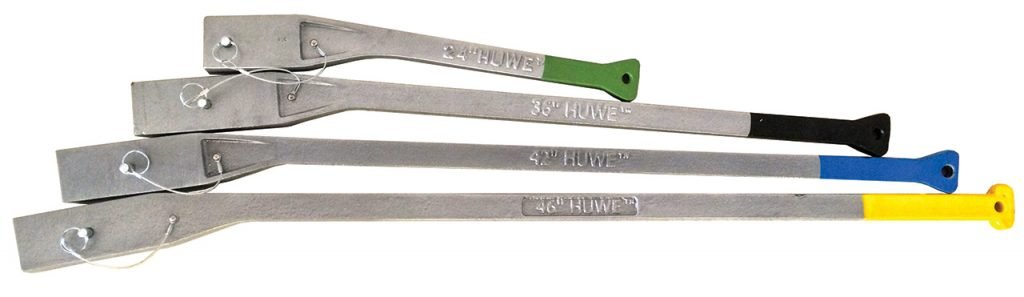

Identify both the nominal union size and the figure number before selecting a head. Each HUWE head is marked for the size and figure combinations it is designed to fit. After choosing the head, select a 24-, 36-, 42- or 46-inch handle according to available space and the approved work procedure. The handles are interchangeable across the listed heads and can be reversed to change the working angle. Do not select a head using pipe size alone.
Why source through CK Loosbrock USA
- Head selection support based on union size and figure number.
- Handle-length guidance for the available work area.
- Current availability and quotation support from Conroe, Texas.
- Access to the official HUWE brochure and operation manual.
Manufacturer specifications
HUWE heads
| Part number | Description |
|---|---|
| OHS-710-0019 | HUWE Head, 2" Fig. 100/200/206/400 |
| OHS-710-0020 | HUWE Head, 2" Fig. 602/607/1002 |
| OHS-710-0021 | HUWE Head, 2" Fig. 1502 |
| OHS-710-0022 | HUWE Head, 3" Fig. 100/200/206/300 |
| OHS-710-0023 | HUWE Head, 3" Fig. 602/1002 |
| OHS-710-0024 | HUWE Head, 3" Fig. 1502 |
| OHS-710-0048 | HUWE Head, 3" Fig. 400 |
| OHS-710-0025 | HUWE Head, 4" Fig. 602/1002 |
| OHS-710-0027 | HUWE Head, 4" Fig. 1502 |
| OHS-710-0049 | HUWE Head, 4" Fig. 100/200/206/300/400 |
| OHS-710-0050 | HUWE Head, 5" Fig. 1002/1502 |
| OHS-710-0028 | HUWE Head, 6" Fig. 100/200/206 |
HUWE handles
| Part number | Description |
|---|---|
| OHS-710-0059 | HUWE Handle, 24" long |
| OHS-710-0030 | HUWE Handle, 36" long |
| OHS-710-0031 | HUWE Handle, 42" long |
| OHS-710-0032 | HUWE Handle, 46" long |
Design features

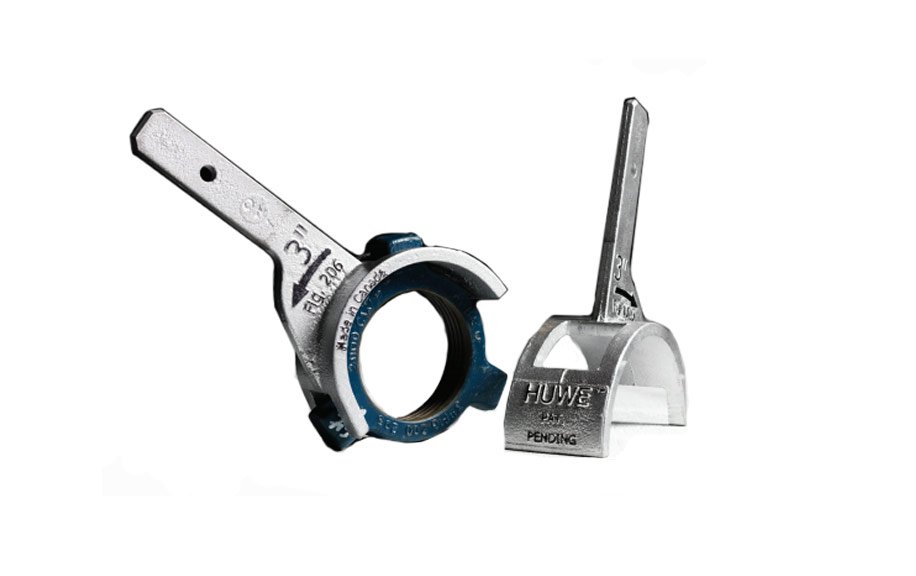

- One-piece cast-steel head with no welds.
- Long-curvature, open-ended head profile designed to sit on the union nut.
- Removable and reversible handle for different working angles.
- Chained safety pin that locks the handle to the head.
- Manufacturer-stated temperature suitability down to -40 °C.
Application guidance

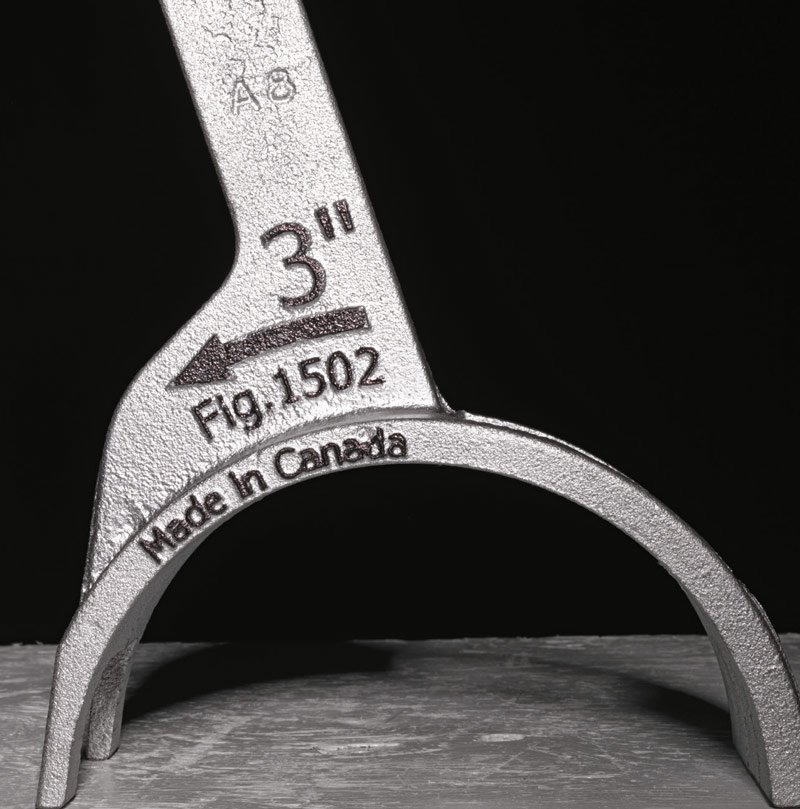

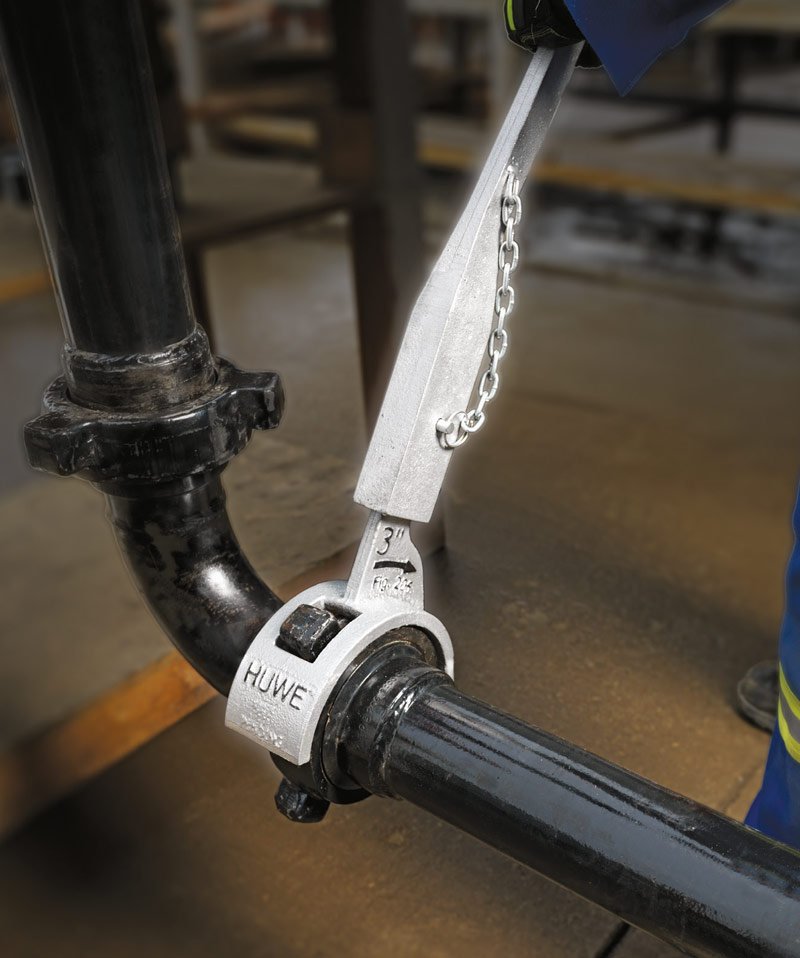

Use the head marking to verify the union size and figure number before fitting the tool. The head may be used by itself to position the union wing before the selected handle is attached. Once the handle is installed and locked with the safety pin, operate the wrench only in the direction shown by the arrow on the head and follow the current HUWE operation manual.
Safety and use limitations
- Use only a HUWE head specifically marked for the union size and figure number.
- Confirm that the handle is fully attached and locked with the chained safety pin.
- Apply force only in the direction indicated by the arrow on the head.
- Do not apply force opposite the arrow. The manufacturer warns that this can cause injury or tool damage.
- Follow the current HUWE operation manual and all site-specific procedures and personal protective equipment requirements.
Available documentation
Frequently asked questions
How do I select the correct HUWE head?
Match both the union size and the figure number to the markings and manufacturer table for the head. Do not select by size alone.
Are all HUWE handles interchangeable?
The manufacturer states that the four listed handle lengths fit the listed HUWE heads. Confirm the exact combination before ordering.
Can the handle be reversed?
Yes. The removable handle has a reversible angle to support access in different working spaces.
Can the HUWE head be used without a handle?
The operation manual states that the head can be used by itself as a hand tool to position the union wing before attaching a handle for final torque.
What information is needed for a quotation?
Provide the union size, figure number, preferred handle length, required quantity, delivery location and any documentation requirements.
Request head-selection support, current documentation and availability for the HUWE wrench from CK Loosbrock USA.
View the existing HUWE Wrench category or browse the OHS product range.
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for HUWE wrench.
Please include the required product code, quantity and delivery location with your enquiry.
