Description
Grip selection for high-pressure gas cylinders
GasGrab is a cylinder-handling tool that uses a patented scissor action to clamp around the body of a compatible high-pressure gas cylinder. The official manufacturer information presents the range for short-distance lifting or movement in industrial settings, including offshore operations. Correct selection depends on the cylinder’s outside diameter at the intended gripping location. Color alone is not a sufficient selection method, even though the listed sizes use different finishes.
Industrial and offshore applications
The manufacturer lists welding operations, BOP accumulator bottle maintenance, mud-pump pulsation-damper nitrogen charging, fire-suppression maintenance, top-drive nitrogen brake charging, air-start systems and lifeboat air-system maintenance. The tool can also be relevant wherever compatible high-pressure cylinders are handled. Each task still requires a manual-handling assessment and the cylinder owner’s instructions.
How to choose a GasGrab
Measure the cylinder body outside diameter in the intended clamping zone and match it to the exact listed product. Confirm whether the quoted code is supplied individually or as a pair. Also provide the cylinder mass, surface condition, valve-protection arrangement, travel distance and working environment. The public source does not list a maximum cylinder mass, so request current operating limits for the selected model.
Manufacturer sizes and codes
| Listed size | Color or configuration | Product code |
|---|---|---|

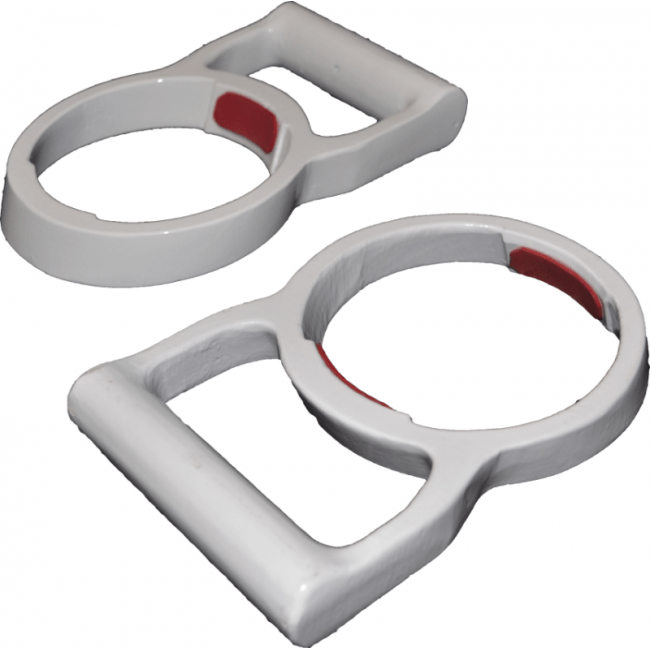

| 4 in / 100 mm | Gloss white, pair | OHSGG100 |

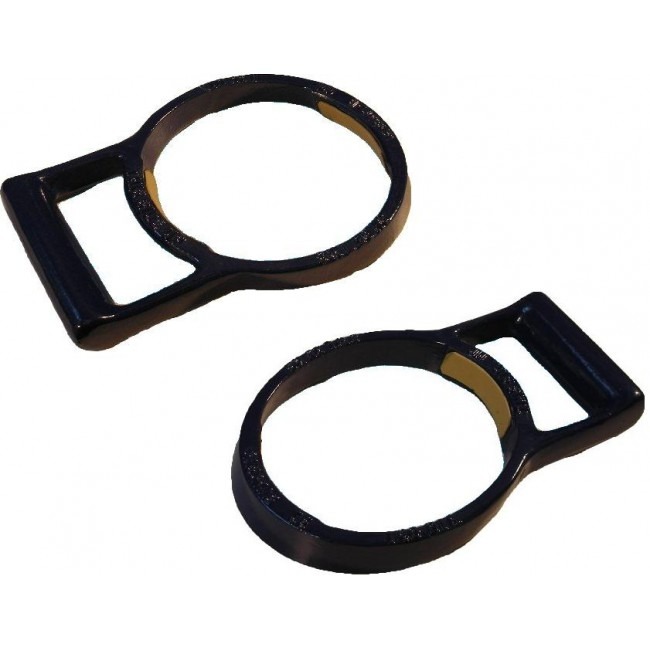

| 5.5 in / 140 mm | Navy gloss, pair | OHSGG140 |

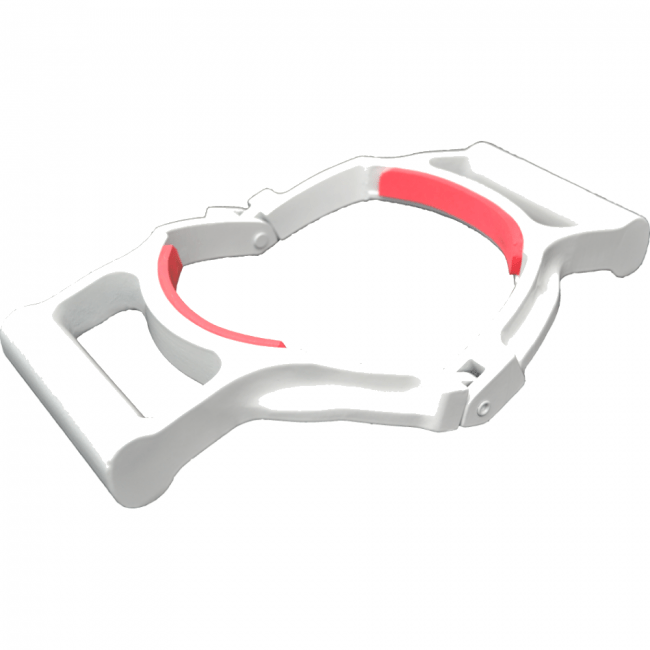

| 7 in / 178 mm | Light grey gloss | OHSGG178 |

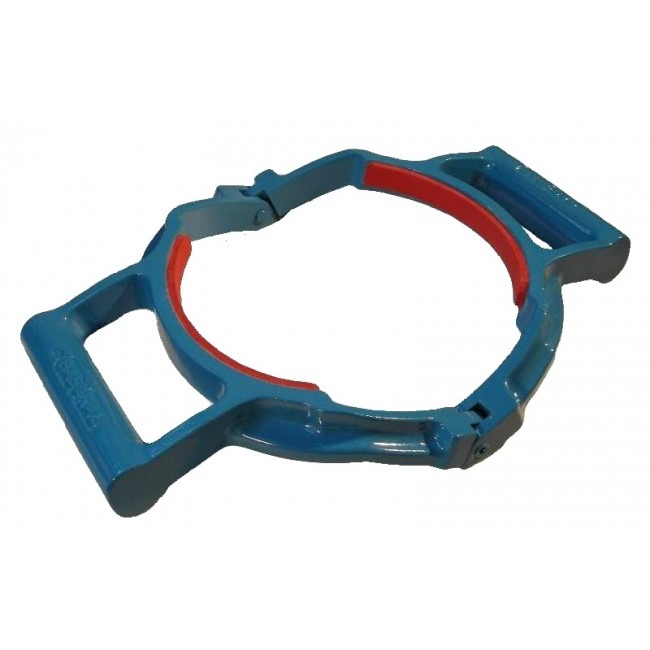

| 8 in / 203 mm | Light blue gloss | OHSGG203 |

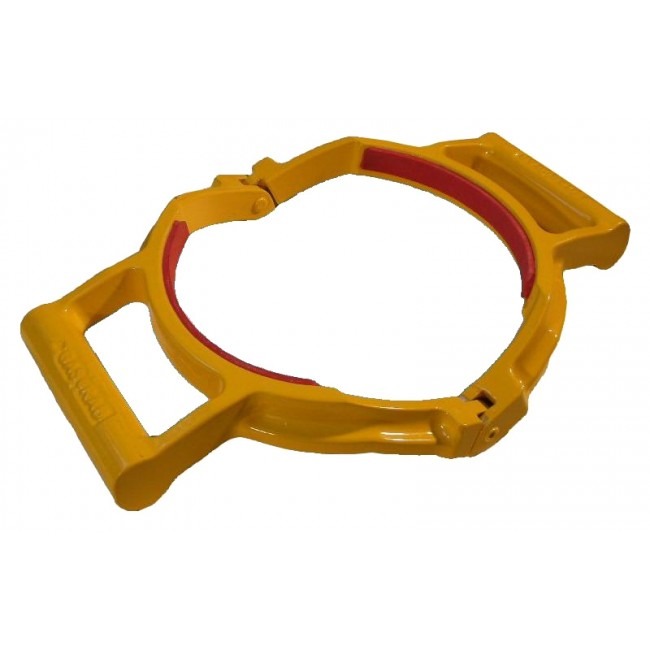

| 8.5 in / 215 mm | Yellow gloss | OHSGG215 |

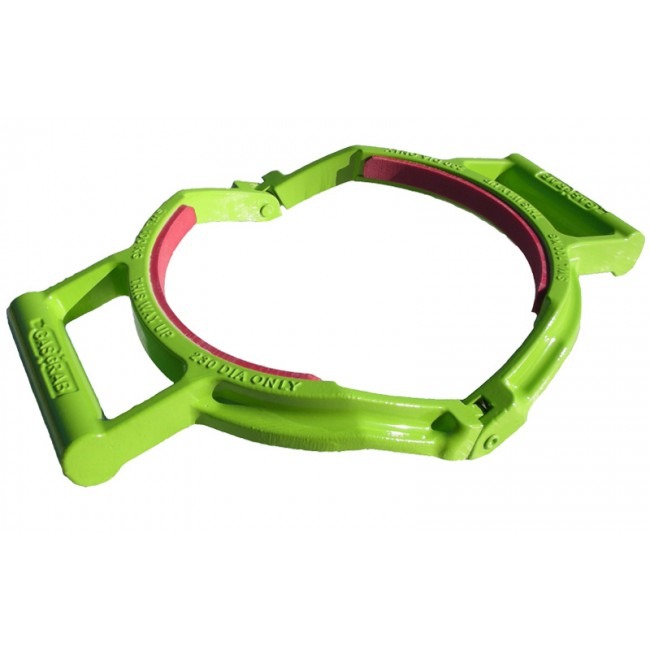

| 9 in / 230 mm | Green gloss | OHSGG230 |

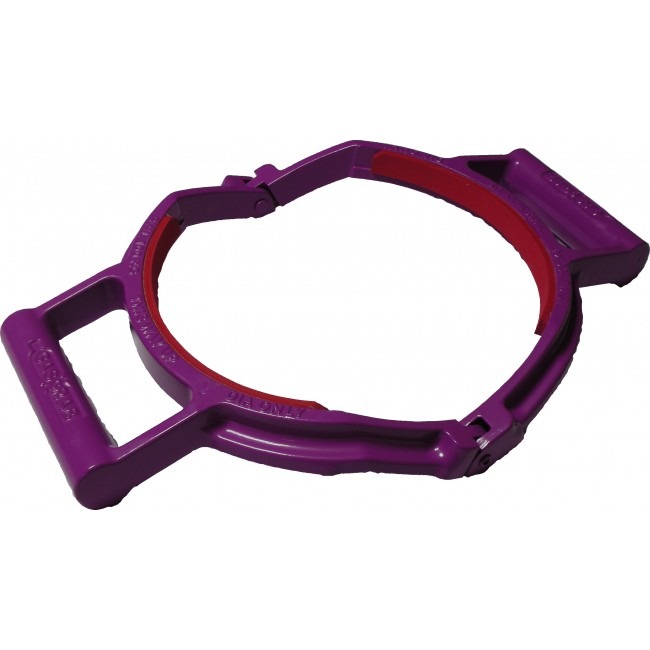

| 9.25 in / 235 mm | Purple gloss | OHSGG235 |

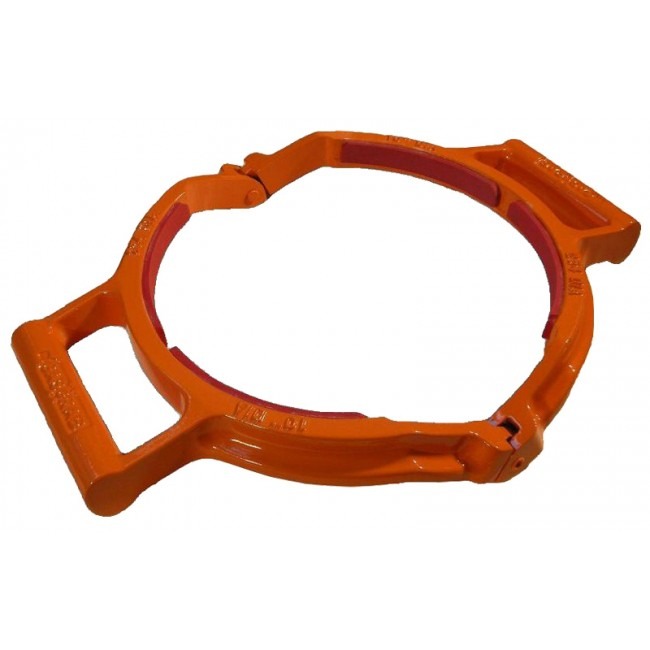

| 10 in / 254 mm | Orange gloss | OHSGG254 |
| 12 in / 305 mm | Red gloss | OHSGG305 |

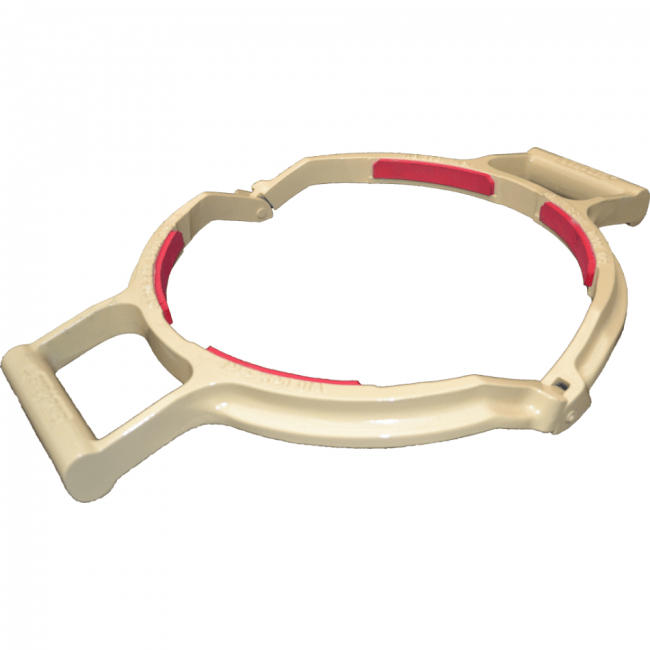

| 12.5 in / 320 mm | Beige gloss | OHSGG320 |

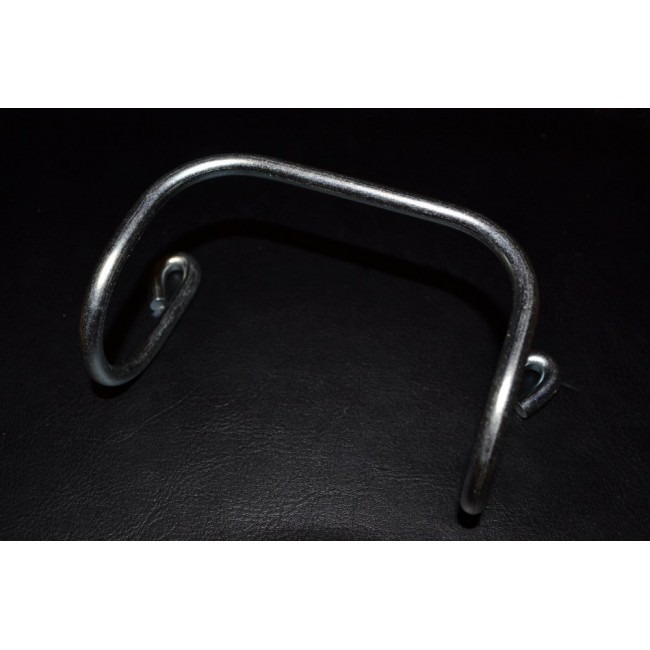

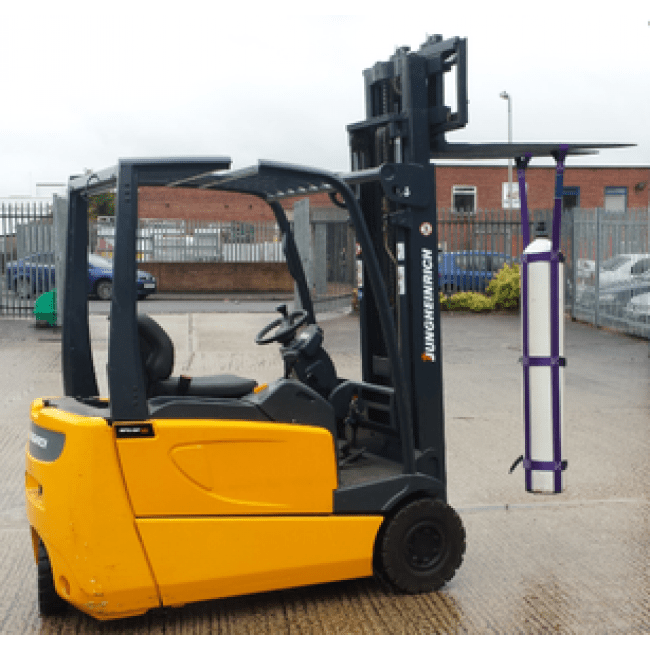

The page also lists wall bracket OHSWB and 9 in / 230 mm gas-cylinder sling OHSGGS230.
Handling guidance
The manufacturer’s user guidance describes short-distance movement with the GasGrab clamped around the cylinder body. For a longer distance, it recommends that two operatives share the load as a team lift. Treat that instruction as a minimum planning point, not an automatic approval. Site limits, cylinder mass, route, posture and other hazards may require a different handling method.
Safety and use limitations
- Match the tool to the measured cylinder body diameter and current manufacturer instructions.
- Inspect the scissor action and contact areas before use.
- Keep hands and feet clear of pinch, drop and crush zones.
- Use a team lift for longer movement as stated by the manufacturer, subject to the site assessment.
- Do not infer a cylinder-mass limit or lifting method that is not published for the selected model.
Official documentation
Americas selection support
For OHS USA to check the configuration, provide the measured cylinder diameter, cylinder type and mass, quantity, movement distance, work environment, required accessories and delivery destination. State whether a pair is required and request written confirmation of any load or environmental limit needed by the project.
Frequently asked questions
How does GasGrab hold a cylinder?
The manufacturer describes a patented scissor action that clamps around the compatible cylinder body.
Which measurement determines the model?
Use the cylinder body outside diameter at the intended clamping location and match it to the listed size.
Are every size and color supplied as a pair?
No. The public table specifically marks the 4 in and 5.5 in products as pairs. Confirm the quoted package for all models.
Can one person carry a cylinder over a long distance?
The manufacturer recommends two operatives share the load for longer movement. The site assessment may require another method.
Is a maximum cylinder mass published?
No mass limit appears on the public product page. Request current limits for the selected product and task.
Send OHS USA the cylinder diameter and handling scenario for GasGrab model-selection support.
Browse Gas Grab Products, review the Pipe Safety Handle or explore all OHS products.
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for Gas Grab.
Please include the required product code, quantity and delivery location with your enquiry.
