Description
Position rigging components without direct hand contact
Rigger Assist is a multi-function positioning and retrieval tool for rigging tasks where personnel need a defined contact point away from potential hand and finger hazards. Offshore Handling Systems offers a compact fixed model for routine work and an extendable model for arrangements requiring more reach. OHS USA can help operations across the Americas compare the two versions and confirm the latest dimensional information before ordering.
Typical rigging support tasks
- Positioning or moving rigging components from a controlled working position.
- Assisting with sling placement and retrieval under an approved rigging procedure.
- Daily rigger tasks where a compact tool can be carried on a tool belt.
- More complex arrangements where an extendable pole helps increase reach.
- Hands Free Working programs intended to reduce direct contact with high-risk areas.
Choose Short or Long

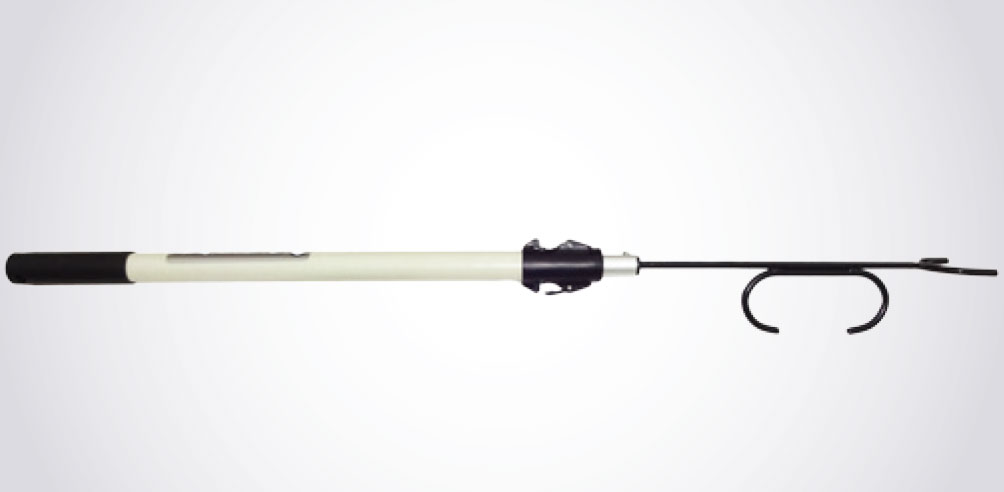

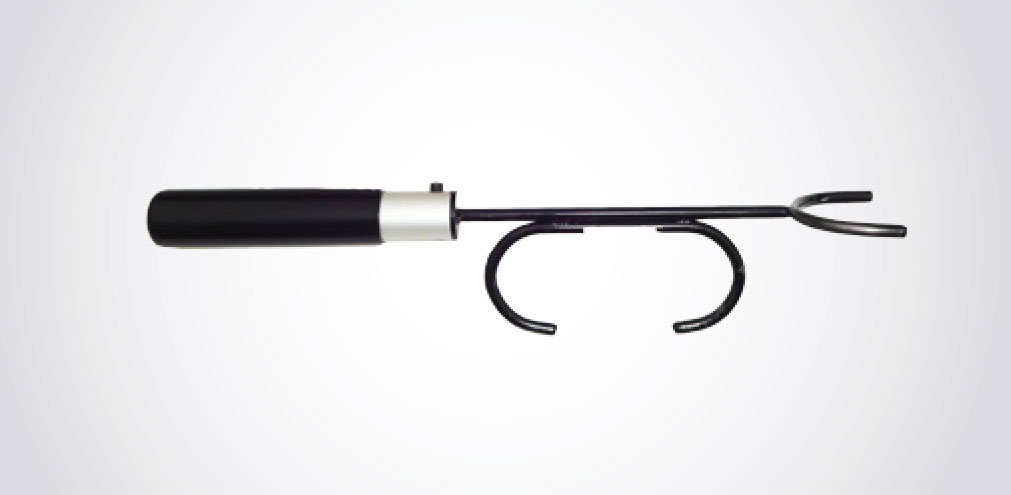

Select the Short model when portability and close-range control are important. It is a fixed 44 cm tool weighing 550 g. Select the Long model when the work plan requires an extendable fiberglass pole and greater reach. Confirm the working envelope, attachment geometry and required control before choosing. Rigger Assist is a positioning aid, not a substitute for tag lines, approved rigging hardware or exclusion-zone controls.
Manufacturer specifications
| Version | Short | Long |
|---|---|---|
| Product code | OHS-RA-440-0000 | OHS-RA-100-1500 |
| Weight | 550 g | 1.4 kg |
| Handle | Aluminium | Fiberglass |
| Insert | Mild steel | Aluminium |
| Tool attachment | 7 mm mild steel | 7 mm stainless steel |
| Published length | 44 cm fixed | See dimensional note below |
The manufacturer technical section describes the Long model as 90 cm retracted and 140 cm fully extended with four telescopic settings. The same official product page also describes a 100 cm to 150 cm range. Because these values conflict, confirm the current production dimensions for OHS-RA-100-1500 before procurement.
Application guidance
Define the intended hook or contact point during the task risk assessment. Keep the operator outside the identified pinch area while retaining enough control to position or retrieve the rigging component. Lock the Long model at the required telescopic setting and verify it is secure before engagement. Maintain communication with the lifting team and keep the Rigger Assist clear of tensioned rigging, moving equipment and uncontrolled loads.
Safety and use limitations
- The manufacturer states that Rigger Assist is not designed for leveraging.
- Do not use it as rigging hardware, a load-bearing connection or a lifting device.
- Inspect the handle, insert, attachment and grip before use.
- Verify the telescopic lock on the Long model before approaching the work area.
- Never enter an exclusion zone or place the tool where it could become trapped in tensioned rigging.
- Follow the lift plan, site procedure, communication protocol and personal protective equipment requirements.
Official documentation
Frequently asked questions
Which Rigger Assist version is easier to carry?
The Short version is fixed at 44 cm, weighs 550 g and is described as suitable for carrying on a tool belt.
How long is the extendable version?
Official manufacturer materials contain conflicting ranges. Confirm current dimensions for product code OHS-RA-100-1500 before ordering.
Can Rigger Assist be used as a lever?
No. The manufacturer explicitly states that the tool is not designed for leveraging activities.
Does it replace approved rigging equipment?
No. It assists with positioning and retrieval but is not a load-bearing connection or replacement for approved rigging hardware.
What should an enquiry include?
Describe the rigging task, required reach, contact point, workspace restrictions, quantity, delivery location and documentation needs.
Confirm the configuration with OHS USA
Request current Short or Long model details from OHS USA for your Americas operation, especially when exact reach is a selection factor. Related tools include the General Cargo Handling Tool and Finger Saver. Browse the complete OHS product range for other positioning solutions.
Request Availability and Pricing
Contact CK Loosbrock for current availability, pricing, model selection or specific handling requirements for Rigger Assist.
Please include the required product code, quantity and delivery location with your enquiry.
