Description
Controlled grating removal from a standing position

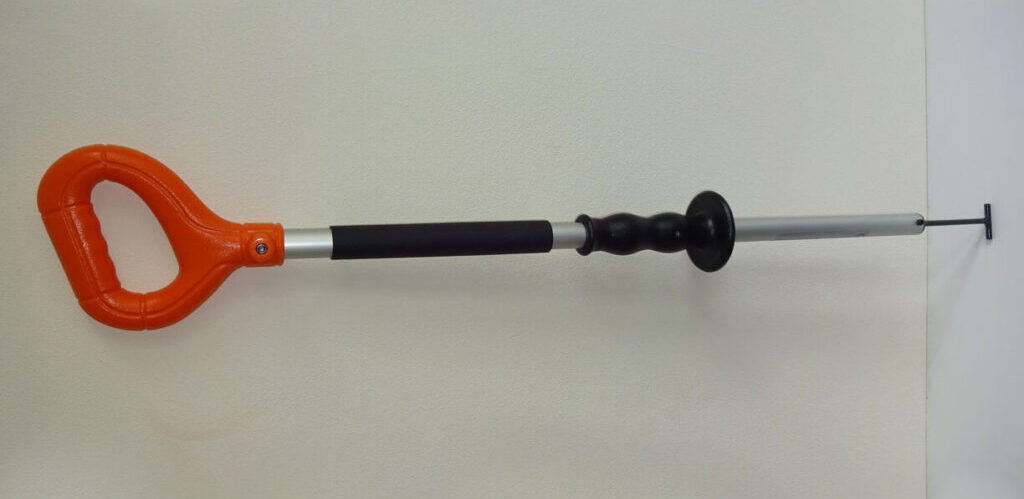

The Grating Lifter is a 1200 mm handling tool intended to assist personnel removing floor grating for machinery-space maintenance and inspection. Its enclosed handle, aluminium staff and shaped steel head allow engagement while the operator remains standing, subject to the site manual-handling assessment. OHS USA can help Americas facilities distinguish the current T Head and V Head codes and confirm compatibility with the installed grating.
Suitable grating applications
- Steel and heavy-duty steel grating.
- Aluminium grating and stair treads.
- Safety grating and fiberglass grating.
- Access for routine inspection beneath removable machinery-space flooring.
- Controlled removal and vertical storage of compatible grating sections.
Selecting T Head or V Head
The current manufacturer page lists two configurations: OHSGLT-1200 with a T Head and OHSGLV-1200 with a V Head. Both are shown with an enclosed handle and 1200 mm length. Select only after checking the grating opening, bar profile, panel weight, access angle and intended engagement point. The official page explains T-section engagement but gives limited detail about V Head compatibility, so obtain written confirmation for the actual grating design.
Manufacturer specifications
| Product | Product code | Handle | Length |
|---|---|---|---|
| Grating Lifter T Head | OHSGLT-1200 | Enclosed | 1200 mm |
| Grating Lifter V Head | OHSGLV-1200 | Enclosed | 1200 mm |
- 8 mm mild-steel tool attachment.
- Heavy-duty aluminium staff and high-visibility attachment.
- No moving mechanical parts in the tool head.
- Heavy-duty rubber strip, hand protector and durable foam-rubber grip.
Application guidance
Survey the panel and confirm its weight can be managed under the site manual-handling procedure. Establish a clear storage position before lifting. Insert the approved head into a compatible opening, verify secure engagement and control the panel through the complete movement. Keep feet and hands clear of the panel edge and landing area. Store removed sections in a stable vertical position only where the site method permits it.
Safety and use limitations
- The public manufacturer page does not state a working load limit or mechanical-lifting rating.
- Do not treat the Grating Lifter as rigging equipment without written manufacturer confirmation.
- Verify head compatibility and panel weight before each task.
- Inspect the head, rubber strip, staff, hand protector and grip before use.
- Do not stand over an open floor area without the required barriers and fall controls.
- Follow the machinery-space access procedure, manual-handling assessment and personal protective equipment requirements.
Official documentation
No dedicated downloadable Grating Lifter specification sheet was linked from the public manufacturer page during this review. Request the latest safe-use information for the selected head before deployment.
Frequently asked questions
Which Grating Lifter versions are listed?
The current manufacturer page lists a 1200 mm T Head model and a 1200 mm V Head model.
Which grating materials are named?
The manufacturer lists steel, heavy-duty steel, aluminium, safety and fiberglass grating, plus stair treads.
Does the tool have moving head parts?
No. The manufacturer describes the attachment as having no moving mechanical parts.
What is the working load limit?
The public manufacturer page does not publish one. Confirm panel suitability and current manufacturer limits before use.
What should an enquiry include?
Provide photographs or drawings of the grating, aperture and bar dimensions, panel weight, access conditions, preferred head and quantity.
Confirm grating compatibility with OHS USA
Contact OHS USA for current head-selection guidance and manufacturer documentation for installations in the Americas. Include exact grating details so compatibility can be checked. Other workplace-handling options include the General Cargo Handling Tool and Rigger Assist. View the full OHS range.
